TITAN 900: The Ultimate Heavy-Duty Waste Shredder
The TITAN 900 is the epitome of heavy-duty waste shredding. Designed to tackle the most demanding applications, this powerful two-shaft shredder excels in processing a wide range of materials, from household and commercial waste to massive industrial components. Its ability to handle enormous loads, such as 10-meter-long GFK rotor blades, sets it apart from the competition. If your business requires a reliable and efficient solution for processing heavy-duty materials, the TITAN 900 is the ideal choice.
PRODUCT IN ACTION
Titan 900 in Action
SPECIFICATIONS
5
Hopper Volume (m3)
800
Fuel Capacity (l)
Dimensions
| Version | Crawler track system |
| Length (mm) | 11,000/11,000 (transport) |
| Width (mm) | 3,000/3,000 (transport) |
| Height (mm) | 4,200/3,700 (transport) |
| Total Weight (kg) | 35,000 |
Drive
| Engine (Volvo Penta) | TAD 1385 VE |
| Power (kW/HP) | 405/550 |
| Fuel Capacity (L) | 800 |
| Gearbox | Bonfiglioli |
Discharge Belt
| Discharge Height (mm) | 3,500 |
| Width (mm) | 1,200 |
| Included | Height adjustable overbelt magnet |
Shredding Unit
| Hopper Volume (m3) | 5 (inc. tilting hopper) |
| Shaft Length (mm) | 2,500 |
| Shaft diameter (mm) | 860 |
| Weight (kg/cassette) | 7,650 |
| Rotation Speed (rpm) | 45 |
ADDITIONAL FEATURES
Built for Manoeuvring
Easy maneuvering and transportability
The standard crawler track system stands for optimal mobility at the application site of the shredder and guarantees a quick and trouble-free loading onto a low-loader.

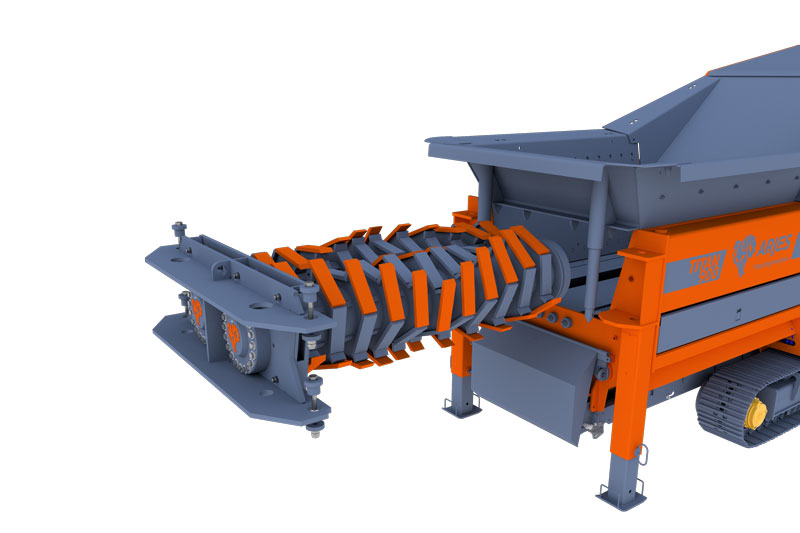

Quick change system for tool shafts
The easy and time-saving installation and dismounting of the pair of shafts guarantees a smooth operation and minimises maintenance and repair efforts at the shredding shafts.

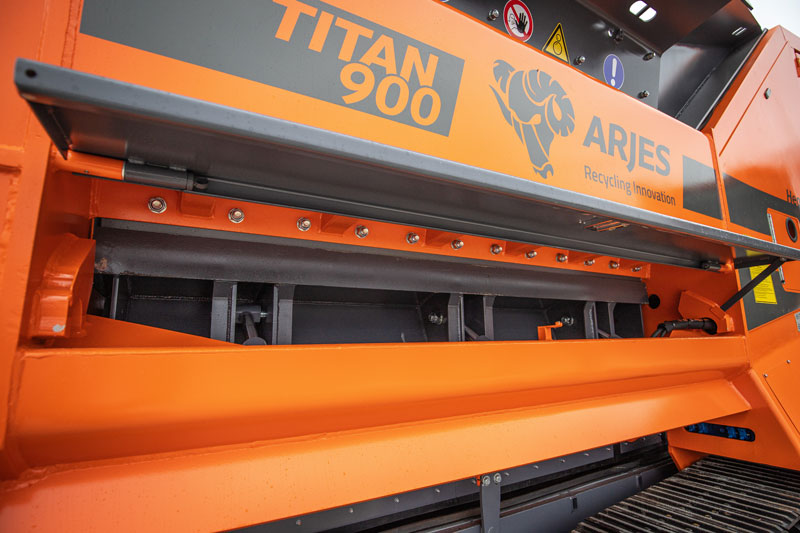

Hydraulically adjustable side combs
To determine the final output grain size, the combs can be closed or opened. In this way, the throughput of the shredder is adjusted to the material and the customer’s requirements.
