The 802h MAXI is a safe and reliable machine for working at heights up to ten metres. Fitted with Tandem Four Wheel Drive for added stability and traction, this model has excellent reach within the tree. With the same rigid chassis and drive components as the 640h, the 802h is ideal for those taller trees.
Rigid Chassis
Designed to work long and hard
Strong rigid chassis with higher boom pivot for reach into trees. Working height of up to 10.00m. Popular in the avocado industry for taller trees.
Foot operated drive controls
Hands free operation for productivity
Unique three-pedal foot controls in platform floor. Independent wheel drive means you can turn on the spot and lift simultaneously, all hands free.
Quiet engine
Powered by high torque petrol engine
Kohler petrol engines are reliable, powerful and fuel efficient with low noise and vibration levels. They’ve been powering Hydralada EWPs since 1975.

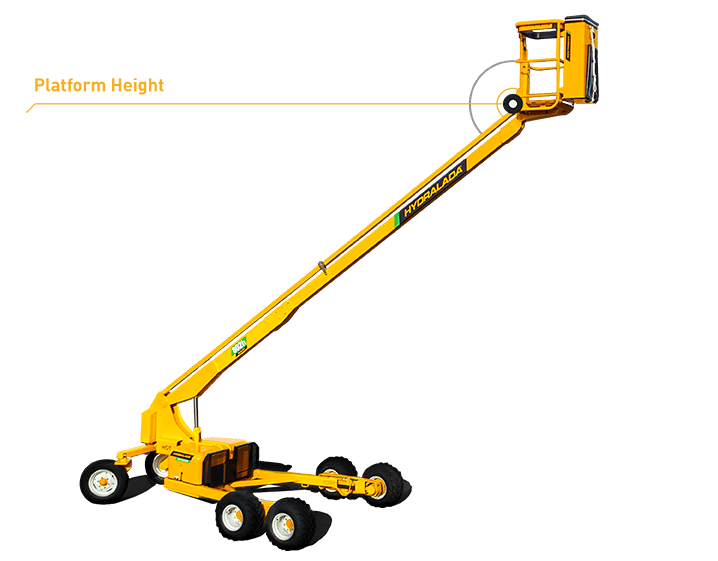

STANDARD SPECIFICATIONS
8.00m
Lift height to the platform
Drive Train and Wheels
1.5″ drive axles
Hydrabrake system
26 x 12.00 x 12 drive wheels
185 x 14 rear castor wheel

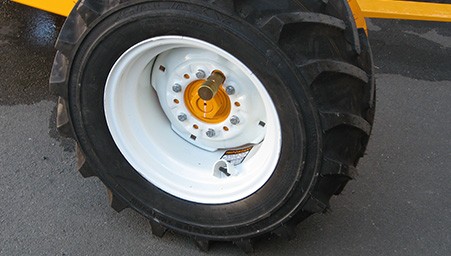

Six stud heavy duty wheel equipment
High torque hydraulic motors
23hp
Kohler twin cylinder OHV petrol engine
Chassis
Heavy duty rigid chassis
Heavy duty lift boom
Low profile tail
Externally mounted muffler
175kg
Maximum platform rated capacity
Controls
Three pedal foot controls
Hand operated accelerator
Smooth hydraulic valve
Dual station with base controls for emergency situations
POPULAR OPTIONS
Customise your 802h MAXI

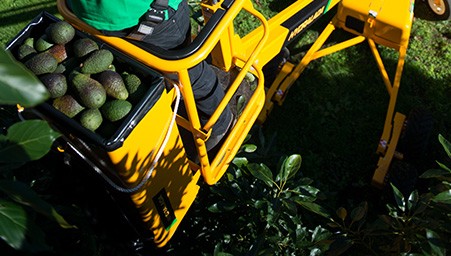

Picking Bag
Bag quick taches to front of operator platform and is designed to handle fruit without bruising. Fruit passes through three compartments then empties into field bin. Trials show it has the best results, delivering high quality fruit to the pack house.

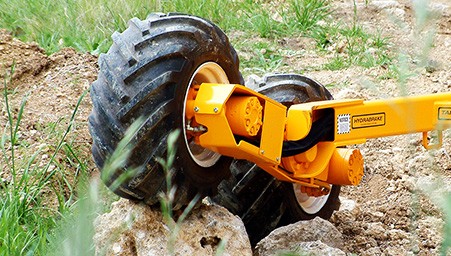

Tandem Four Wheel Drive
Increases machine’s overall stability and improves traction on rough, uneven and sloping terrain. Includes four powerful high-torque hydraulic motors and the driving wheels are mounted to an oscillating beam for suspension and a smoother ride.
Free Wheeling Hubs
This enables the drive wheels to be disengaged and the machine becomes towable behind a vehicle at a maximum speed of 30kph. This option comes with a heavy duty towing frame. Ideal for transporting the machine without the need for a trailer or truck.

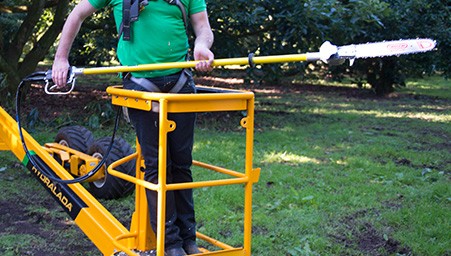

Hydraulic Chainsaw
A hydraulic chainsaw from an elevated work platform is the safest and most efficient way to prune. Quiet trigger start/stop, no dangerous pull starting, no refuelling, lightweight and powerful. Available in either pistol grip or pole configuration.

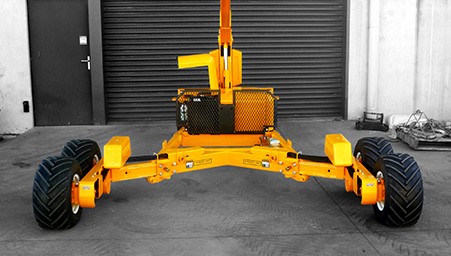

Adjusta Track
This option allows the overall wheel track of the machine to be extended to 3.00m, giving a larger footprint on the ground, increasing the machine’s stability and improving the drive performance.

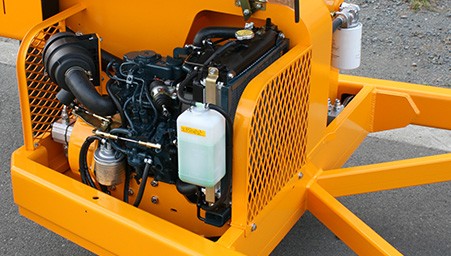

Diesel Engine
A twin cylinder water cooled Kubota diesel engine is an option in liue of the standard Kohler petrol engine. A quiet, fuel efficient, and high torque alternative.
